Macromatic Obsoletes SS-6 & SS-8 Time Delay Relays

Due to an upcoming component obsolescence, Macromatic has obsoleted the Compact Time Delay Relays, SS-6 and SS-8 Series.  Click here for a list of products that are no longer available.

Macromatic's TR-5 Series is an ideal replacement for the obsolete products and most are stocked at one of Macromatic's authorized distributors.  The TR-5 Series has the same functions, input voltages and time ranges as the SS-6 & SS-8 products. Search below for the exact equivalent TR-5 Series product to replace the SS-6 or SS-8 Series product you are currently using.

Please note that the TR-5 Series products are taller and wider than the SS-6 and SS-8 Series products, so carefully check the dimensions shown on the technical documentation to ensure the equivalent product will fit in the same space as the smaller SS-6 and SS-8 Series Time Delay Relays. Also, note that the trigger switch for SS-8 off delay and single shot functions is connected to pins 7 & 8. On the 8 pin TR-5 Series equivalents, it is connected to pins 5 & 6. Therefore, some simple rewiring of the trigger switch will be required. Use the table below to view the major differences between the SS-6 and SS-8 Series products and the equivalent TR-5 Series products:

	SS-6 & SS-8 Series	TR-5 Series

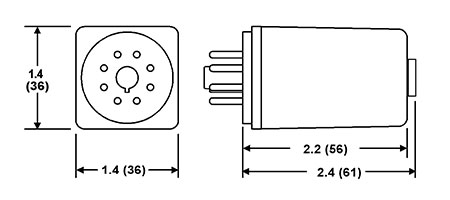

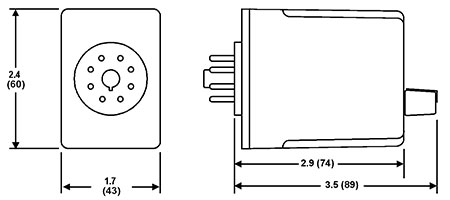

Enclosure Size	Click to expand view. All Dimensions in Inches (Millimeters)	Click to expand view. All Dimensions in Inches (Millimeters)
Potentiometer Knob	Small	Full-Size
Output Contacts:   On Delay &   Interval On   Off Delay &   Single Shot	5A SPDT 5A SPDT	10A DPDT 10A SPDT or DPDT
Trigger Switch	Connected to Pins 7 & 8	Connected to Pins 5 & 6
