Programmable Encapsulated Time Delay Relays
Replace Most Cube Timers with Only 3 Catalog Numbers
With so many possible combinations of functions, time delays & input voltages, how can someone find the exact product to replace an existing unit & get back into operation? Well, Macromatic has the answer with our new THR-3 Series programmable encapsulated time delay relays.

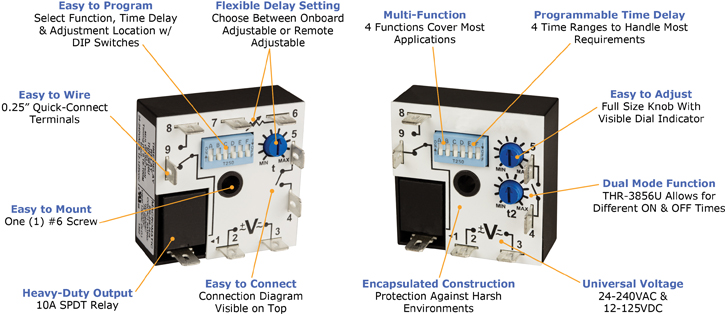

The new THR-3 Series has only three catalog numbers, but each offers all these features:
- Multi-Function--4 built-in functions--that's 12 of the most common timing functions
- Universal Voltage--what application cannot be handled by one product with a 24-240VAC & 12-125VDC input voltage?
- Programmable Time Delay--any delay up to 100 minutes (or 1,000 minutes on THR-3856U)--choose onboard or remote adjustable--even replace a timer with a fixed delay!
- Easy to Set-up--Six DIP Switches can program all of the above
- 10A Relay Output--To handle most pilot duty & fractional hp loads
